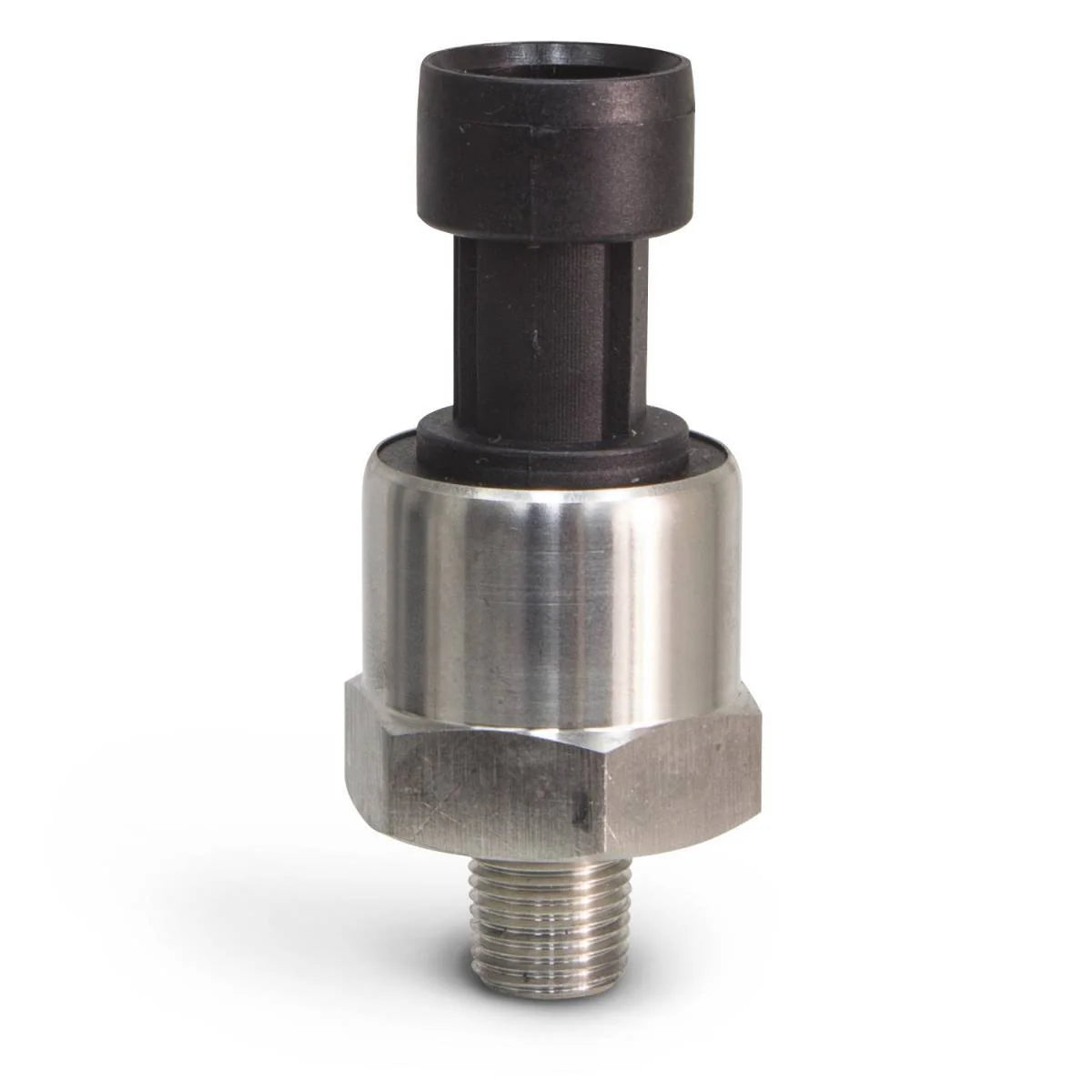

3 BAR MAP Sensor (Stainless) 1/8" NPT

3 BAR MAP Sensor (Stainless) 1/8" NPT

$43.00 CAD
$43.00 CAD
Sale Sold out
Shipping calculated at checkout.
  • Thread Type: 1/8" NPT
  • Accuracy: ±1.0%FS
  • Output signal: 0.5-4.5V
  • Supply voltage: 5VDC
  • Operating temperature: -40～105℃
  • Compensation temperature: -20～80℃
  • Operating current: ≤3mA
  • Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
  • Long-term stability: ≤±0.2%FS/year
  • Response time: ≤3ms
  • Overload pressure: 150%FS
  • Burst pressure: 300%FS
  • Cycle life: 500,000 times
  • Sensor core: Al2O3-96% ceramic sensor
  • Pressure connection: 1/8”NPT,

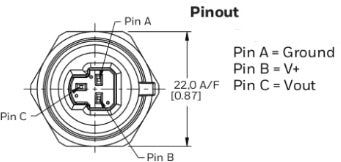

  • Electrical connection: Packard connection
  • Housing material: 304 Stainless Steel
  • Protection class: IP65
