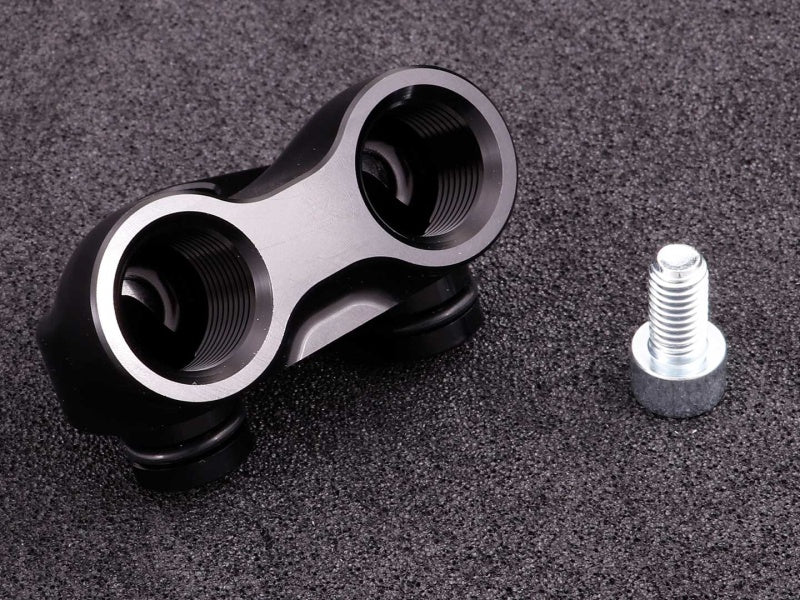

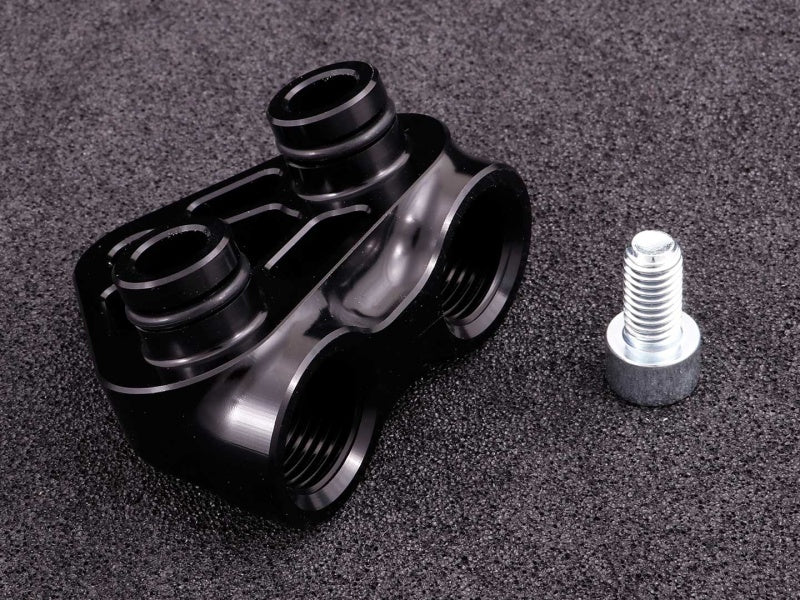

8HP Oil Cooler Adapter - 8HP70 / 75 Jaguar Land Rover - Type 6 (22001007)

8HP Oil Cooler Adapter for 8HP70 / 75 Jaguar Land Rover / Aston Martin

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded output, thread ¾-16.
Use any ORB8 fittings to whatever output your application finds suitable (AN6, AN8, AN10 etc.).

Made by high grade alumium and beautifully 5-axis CNC gives a smooth and attractive look. Big bore internal oil passages to ensure maximum flow. Anodizied black and laser engraved for a premium feel and experience.

The 8HP70 / 75 Jaguar Land Rover / Aston Martin has 16.0mm bores, offset holes with M8 mounting bolt. Comes with bolt and o-rings.

You can also check the transmission technical information page for more detailed information.

Transmission technical information

It is important to note that the transmission fluid should not exceed 140°C.
