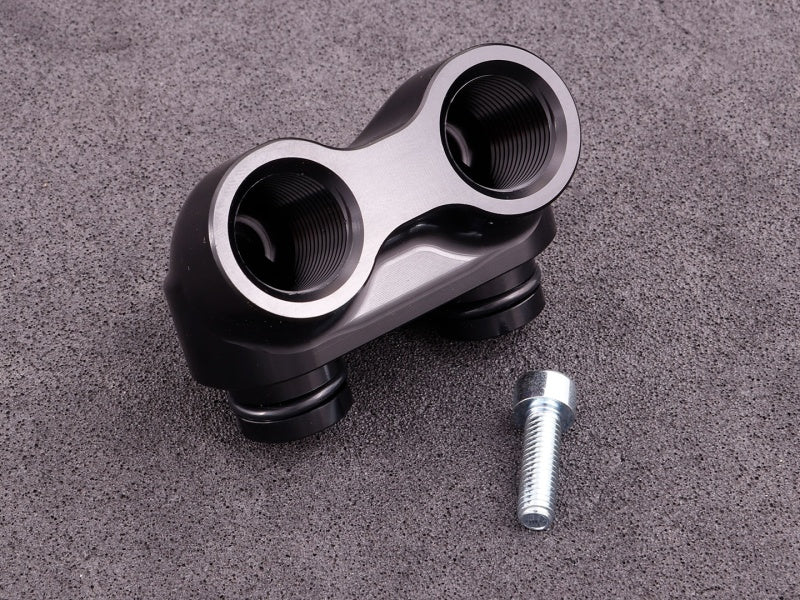

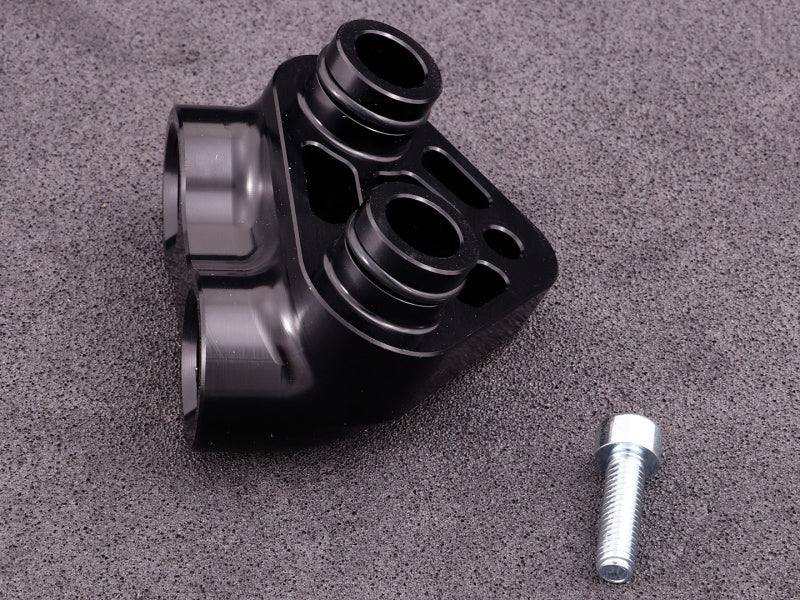

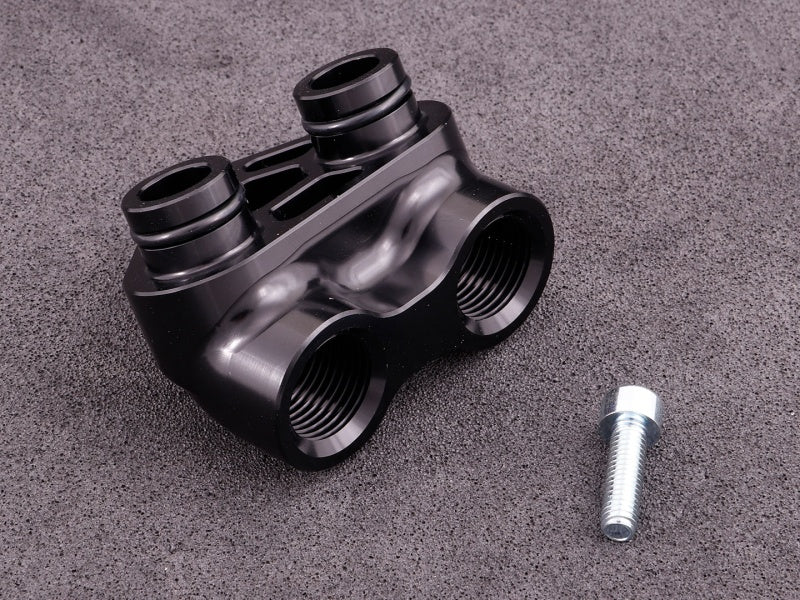

8HP oil cooler adapter BMW N54/N55, N63 AND N73/N74 - TYPE 2 (22001002)

8HP Oil Cooler Adapter for 8HP45 N54/N55, 8HP70 N63 and 8HP90 N73/N74

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded output, thread ¾-16.
Use any ORB8 fittings to whatever output your application finds suitable (AN6, AN8, AN10 etc.).

Made by high grade alumium and beautifully 5-axis CNC gives a smooth and attractive look. Big bore internal oil passages to ensure maximum flow. Anodizied black and laser engraved for a premium feel and experience.

This adapter has 18 mm bores, ofset holes and M8 mounting bolt. Comes with bolt and o-rings.

You can also check the transmission technical information page for more detailed information.

Transmission technical information

It is important to note that the transmission fluid should not exceed 140°C.
