Absolute Pressure Sensors (Stainless) - 1/8" NPT

1/8 NPT Stainless pressure transducer (absolute scale) perfect for fuel/oil pressure, turbo back pressure, coolant pressure, even nitrous bottle pressure.

Select the appropriate sensor range for your application.

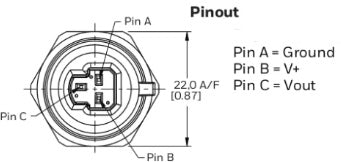

Standard Delphi 3 pin connector included with terminal & seals

• Thread Type: 1/8" NPT
• Accuracy: ±1.0%FS
• Output signal: 0.5-4.5V
• Supply voltage: 5VDC
• Operating temperature: -40～105℃
• Compensation temperature: -20～80℃
• Operating current: ≤3mA
• Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
• Long-term stability: ≤±0.2%FS/year
• Response time: ≤3ms
• Overload pressure: 150%FS
• Burst pressure: 300%FS
• Cycle life: 500,000 times
• Sensor core: Al2O3-96% ceramic sensor
• Pressure connection: 1/8”NPT,
• Electrical connection: Packard connection
• Housing material: 304 Stainless Steel
• Protection class: IP65
