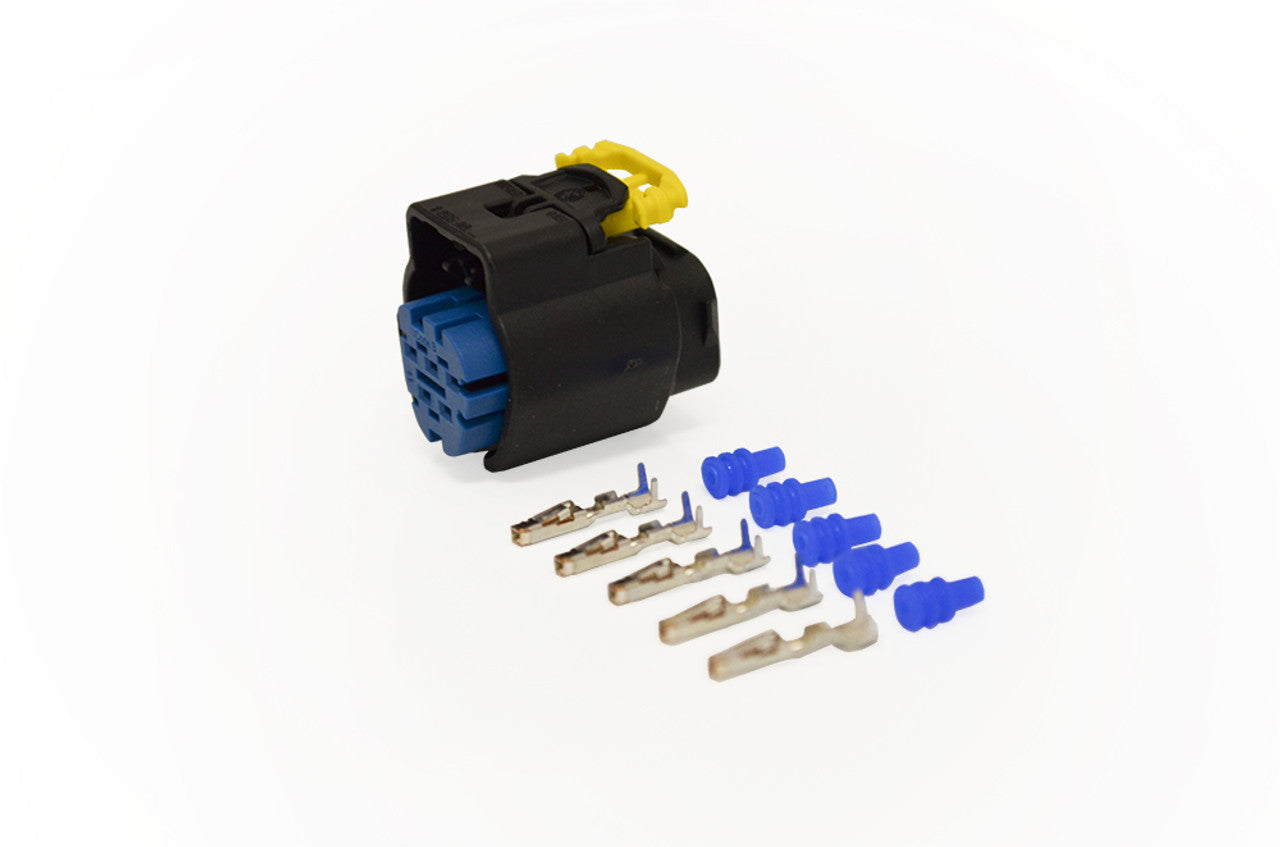

Bosch Motorsport 10 BAR Sensor Plug & Pins

Terminals and seals are included

Trapez / Connector 5P / Code B / Black

• Product Type Connector Housing
• Number of positions 5
• Code B
• Blade width 1.2mm
• Connection System Wire-to-Device
• Gender Female
• Sealed connection Yes
• Primary Locking (Terminal) Lance-locking
• Colour blue
• Body Material PA 66 GF
• Length 26.03mm
• Width 23.01mm
• Height 27.8mm
• Vibration Resistance Engine / Transmission
• Vibration strength 45G
• Temperature range, min. -40°
• Temperature range, max. 150°
• Terminal Sealing Single wire seal
• Type of seal (connector) radial seal
• Type of seal (cable) single wire seal
• Type of locking mechanism (connector) with control positioning assurance
• Secondary locking Yes
