Regular price
$117.00 CAD
Regular price
Sale price
$117.00 CAD

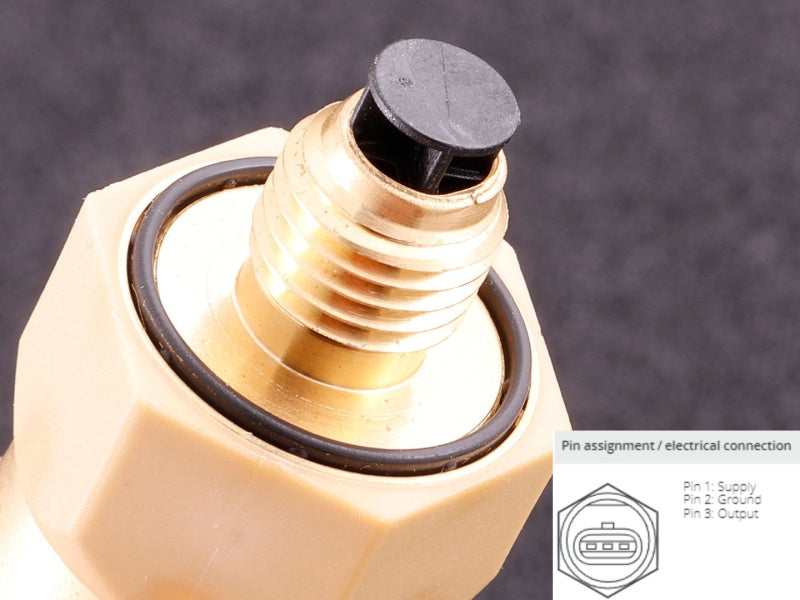

Pinout (looking into the sensor):
Pin 1: Supply Pin 2: S-GND Pin 3: Output signal (PWM/Digital)
| Measuring Range from [bar] |
0,5 |
| Measuring Range from [°C] |
-40 |
| Measuring Range to [bar] |
10,5 |
| Measuring Range to [°C] |
160 |
| Number Of Pins |
3 |
| Operating pressure to [bar] |
40 |
| Temperature range from [°C] |
-40 |
| Temperature range to [°C] |
150 |
| Thread Size |
M12X1,5 |
