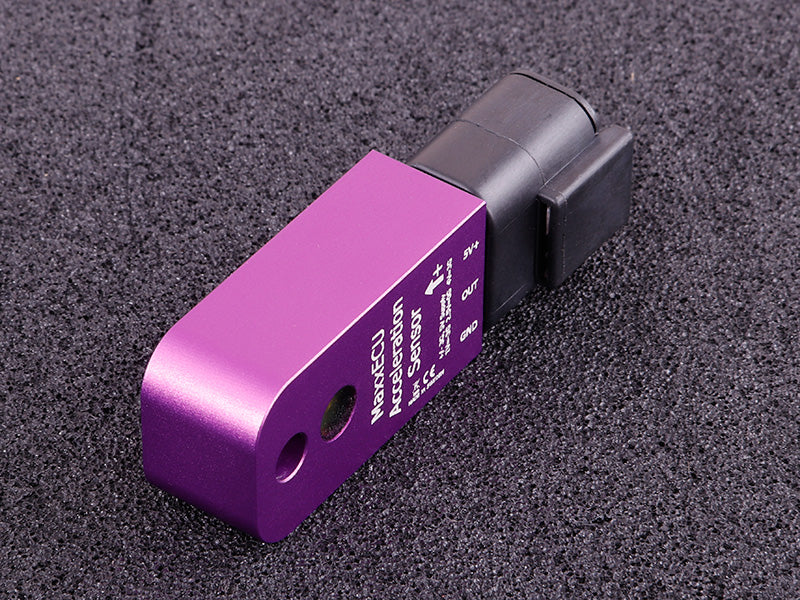

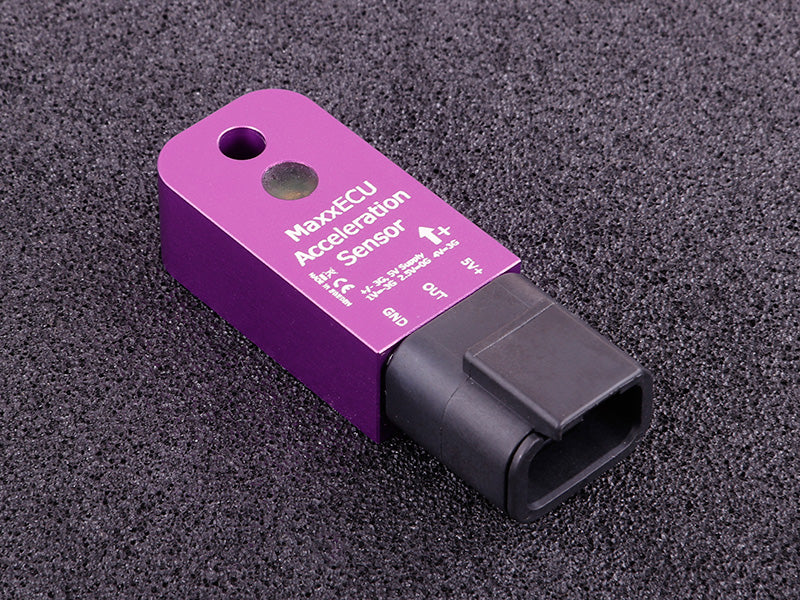

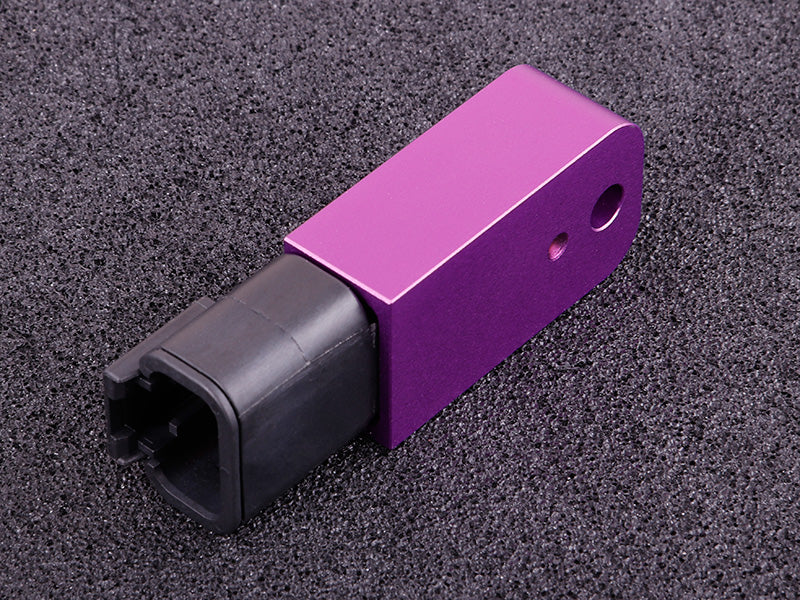

MaxxECU - Acceleration sensor (+/- 3G)

Acceleration sensor with the 0-5V output signal (max 3G)

• Pin 1: Sensor GND
• Pin 2: 0-5V output
• Pin 3: +5V power supply

Don't forget: 3-way DTM connector

Output:

• 1V ut = -3G
• 2.5V = 0G
• 4V ut = 3G

Works with most ECU systems out there, but mainly developed for MaxxECU systems.
