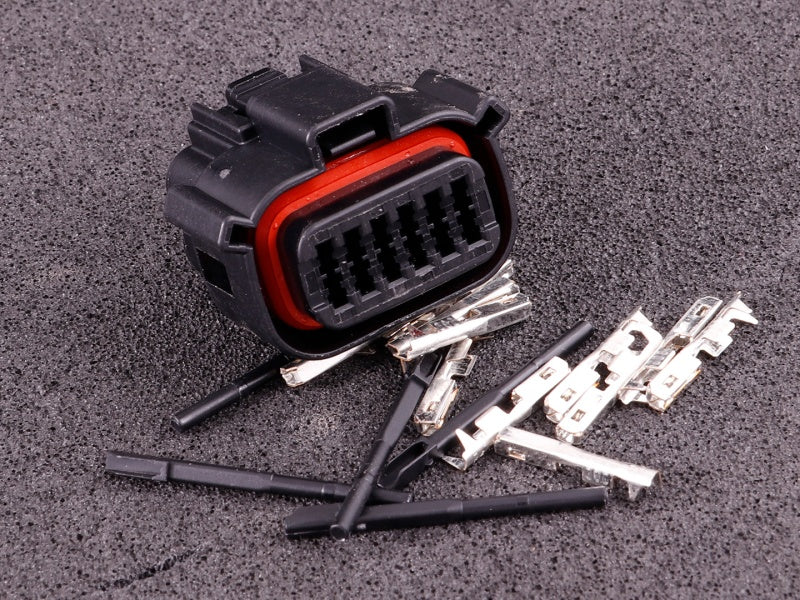

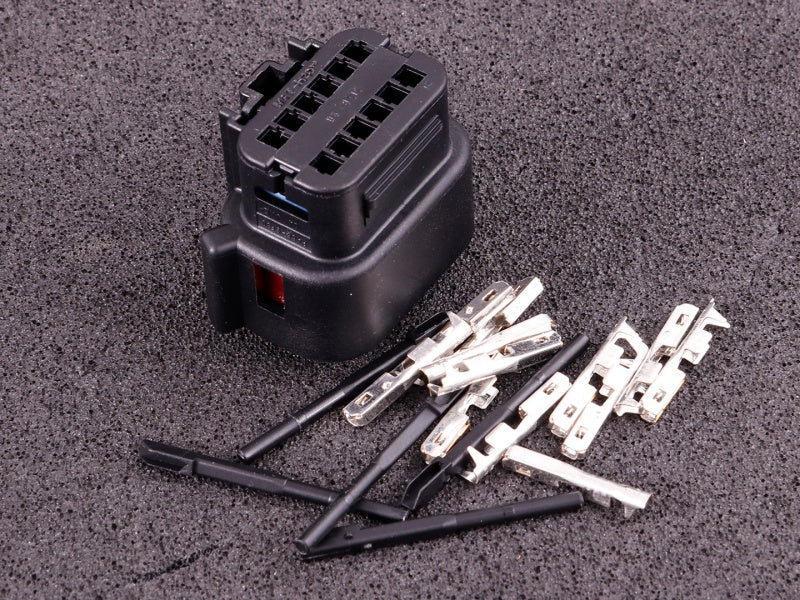

Connector 12-way Molex 120G housing (PWM idle stepper module)

The connector required/used for the MaxxECU PWM 2 Stepper Idle Module

Don't forget: PWM 2 Stepper Idle Module

Pinout:
Pin 1 = Coil 1 Positive
Pin 2 = Coil 1 Negative
Pin 3 = Coil 2 Positive
Pin 4 = Coil 2 Negative
Pin 5 = PWM Input
Pin 7 = +12V (from ignition key)
Pin 12 = GND
