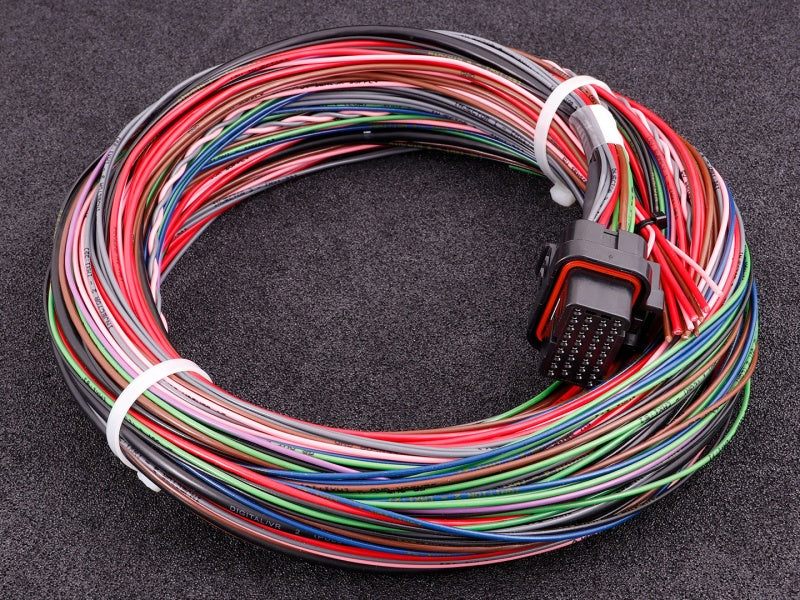

MaxxECU - GEN2 RACE Harness C1

MaxxECU GEN2 RACE flying lead wiring harness, 3 meters long.

I/O on C1:

• PULSE 1/2/3/4
• Ignition 1/2/3/4
• Injector 1/2/3/4
• Engine GND
• Sensor GND
• 5V power supply<7li>
• CAN 1
• GP out 1/2/3/4/5 (GND)
• 12V supply 1
• AIN 1/2/3/4/5
