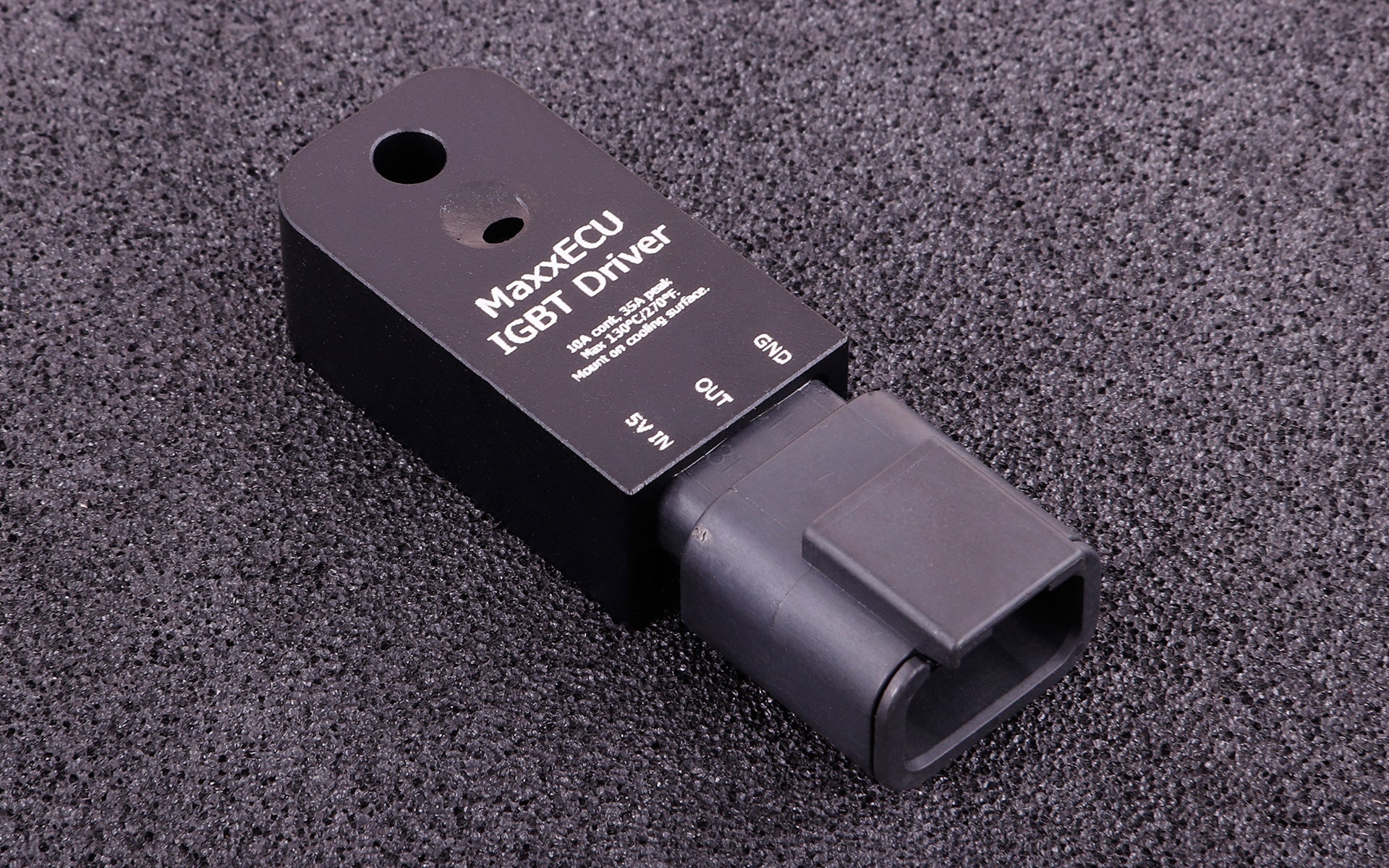

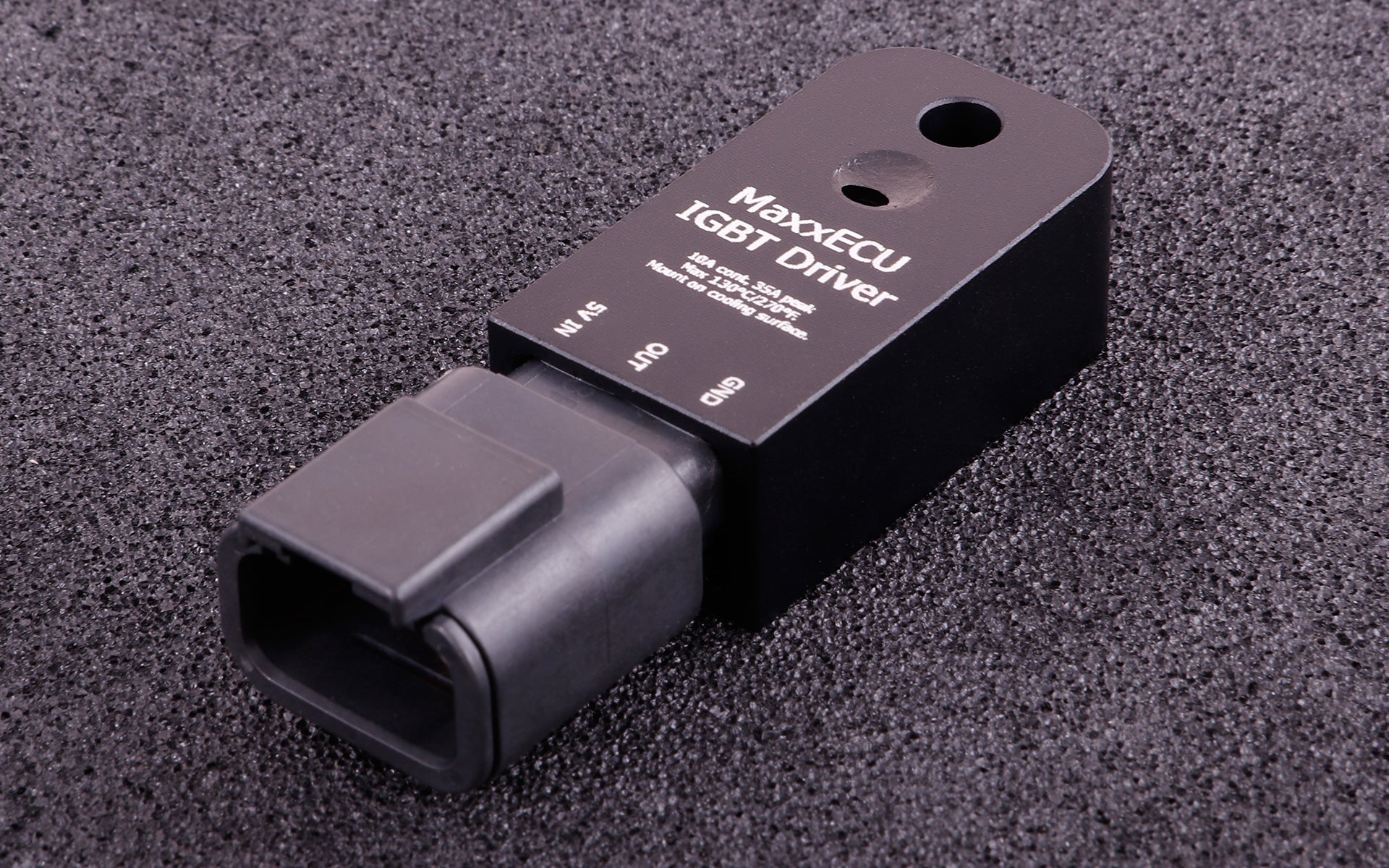

MaxxECU - IGBT driver

The MaxxECU IGBT Driver can be used as ignition amplifier, or to directly other high power/inductive loads such as driving a NOS solenoid.

• Wired to a MaxxECU IGN output (5v)
• 30A peak
• 10A nominal
• Module REQUIRED to be mounted on a bigger surface to divert heat.

Don't forget: 3-way DTM connector

• Pin 1: +5V power supply
• Pin 2: Output
• Pin 3: GND
