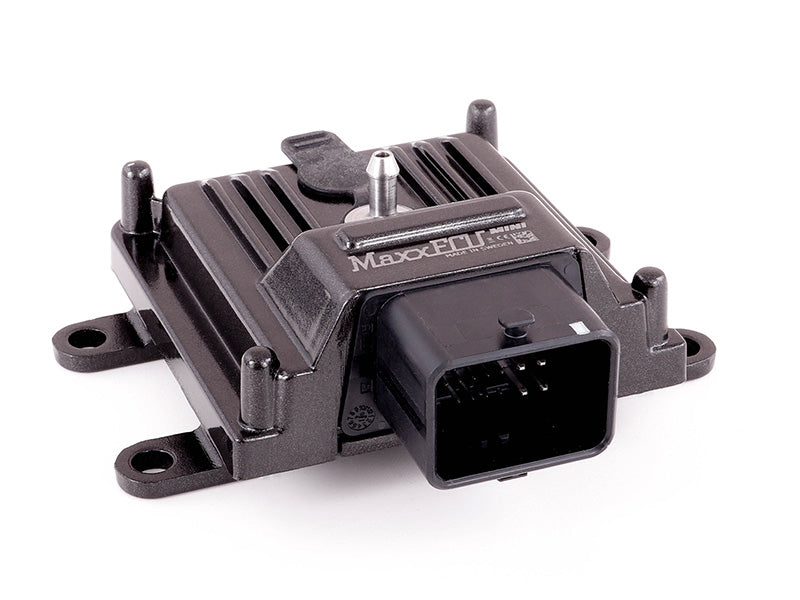

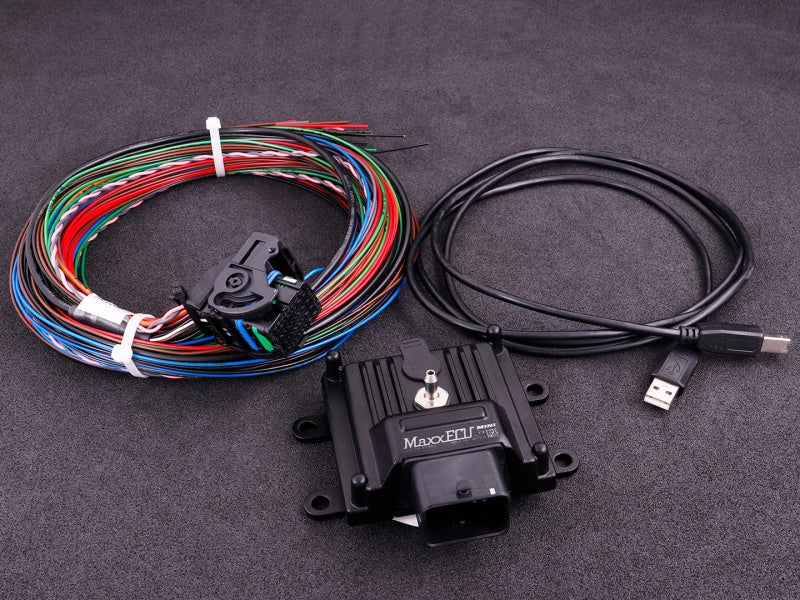

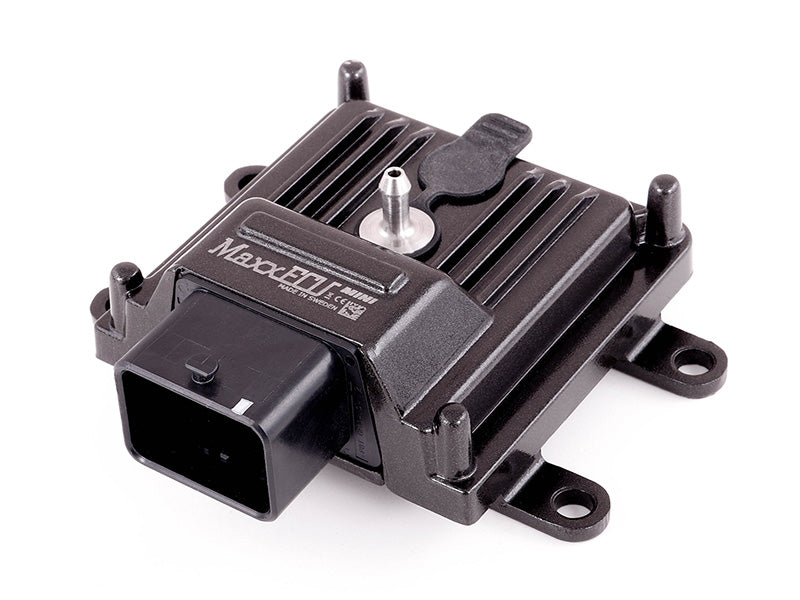

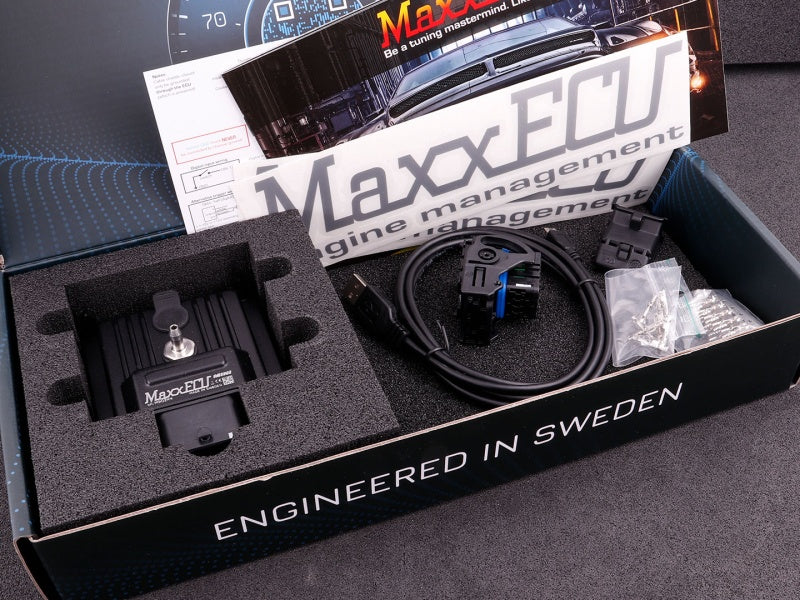

MaxxECU MINI

MaxxECU MINI, based on our market leading MaxxECU units and uses the same easy to use, yet powerful MTune software.

Can be ordered with and without internal CAN Resistor for easier integration into existing vehicle networks.

Fast Facts:

• 4 injector (high impedance only) and 4 ignition outputs
• 4 ignition outputs (no internal amplifiers).
• IAT, TPS, CLT analog inputs.
• Built-in 400kPa MAP-sensor.
• 2 extra 0-5V analog inputs.
• 2 extra digital inputs.
• 4 extra GPO (GND) outputs.
• CAN.
• 1 trigger input (VR/Hall). Available digital input can be used as HOME for sequential control).
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.
