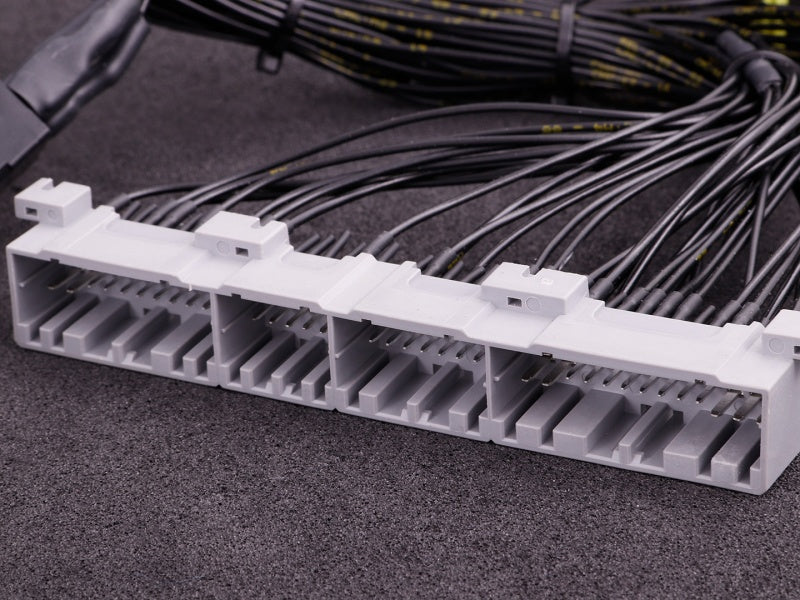

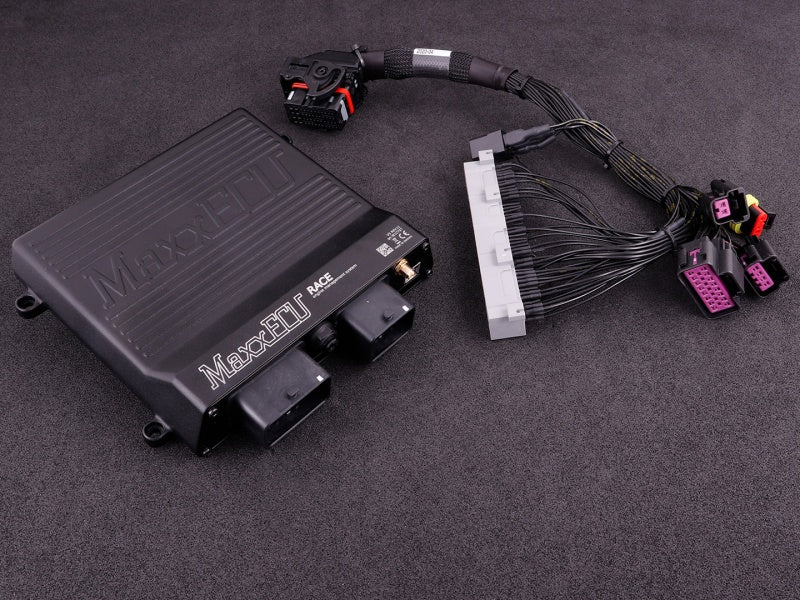

MaxxECU - Mitsubishi EVO IV - VIII MaxxECU RACE Plugin STANDARD

Installation notes:

The EGR valve is not controlled.
Stock EVAP can be removed and freeing up GPO 7 for extra in/out on MaxxECU. For using the car's standard ODB-2 port an external wiring to ODB-2 port is needed.

• 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness) or EXTRA Version
• Built-in 400kPa(3bar boost) MAP-sensor
• Fast and reliable USB PC-communication
• Android MDash app wireless BT-communication as dash
• Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor
• Control orginal idle solenoid, AC, tachometer and other original equipment*
• Fuel injectors can be replaced with optional high or low ohm
• Stock lambdasensor(s) can be removed (not used) and can be replaced with a LSU 4.2 wideband oxygen sensor (not included)

• No change in the vehicle's original system needs to be done
