MaxxECU VR to Hall Converter

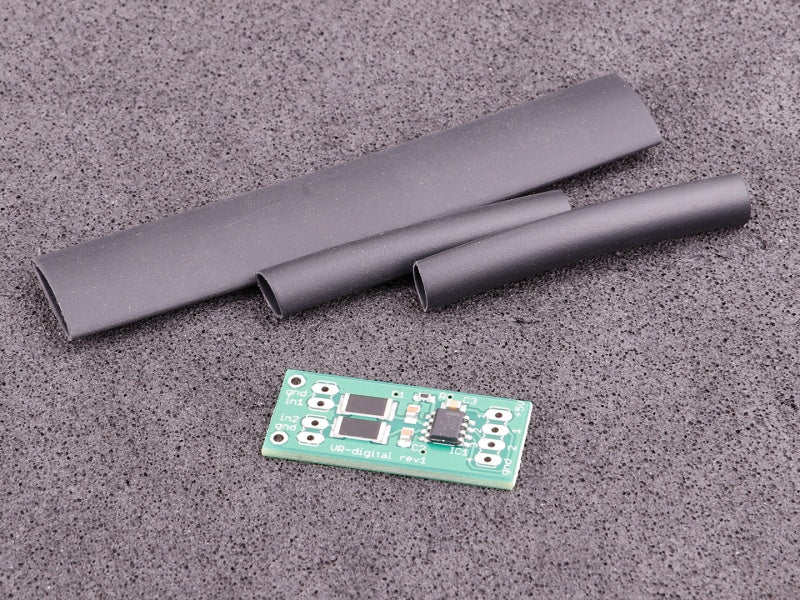

Simple dual channel VR to hall sensor converter module board.

Board to be soldered and wrapped in heat-shrink tube. The VR to Hall Sensor converter provides a simple, cost-effective solution to connect a variable reluctance (VR) sensor to a hall effect sensor input on your MaxxECU.

Simply connect +5V power, ground, and one (or two) VR sensors to the circuit board, and it will output a 5V DC square wave with a frequency that matches the AC signal created by the VR sensor.

 MaxxECU Support (information / wiring)

• Triggers at 0.4V, max 200V.
• 34x14mm
